SKU TX-NR7100 Category Brand:

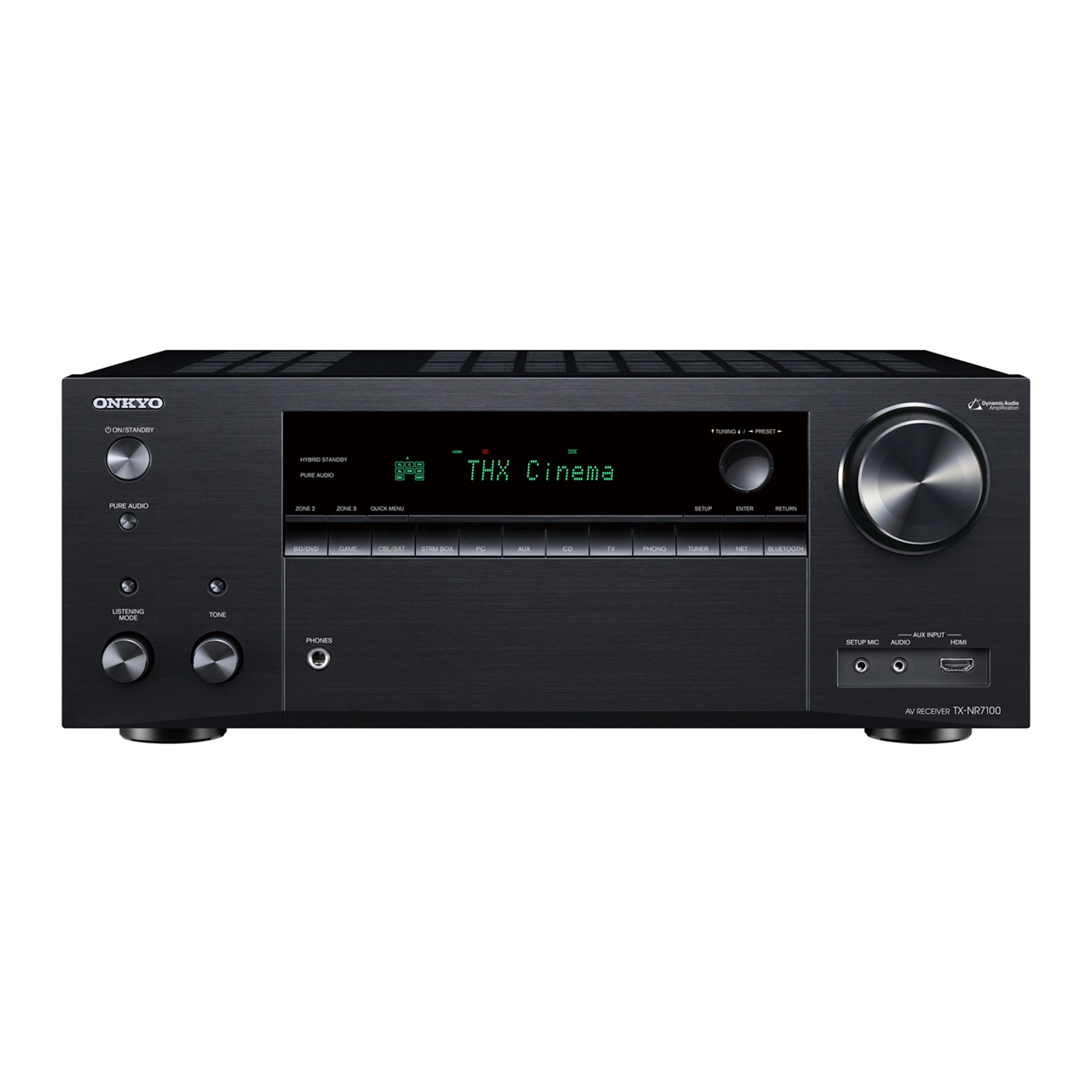

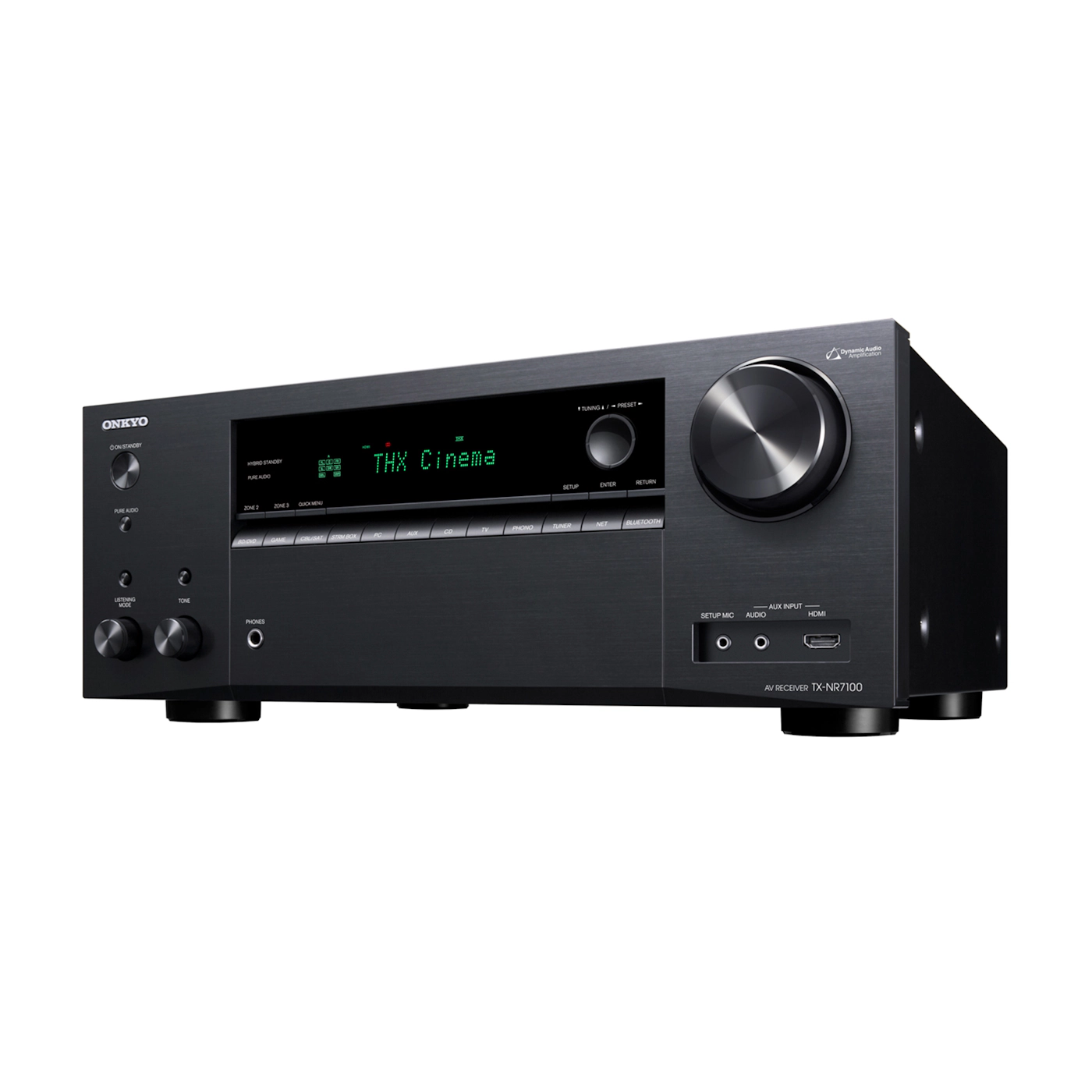

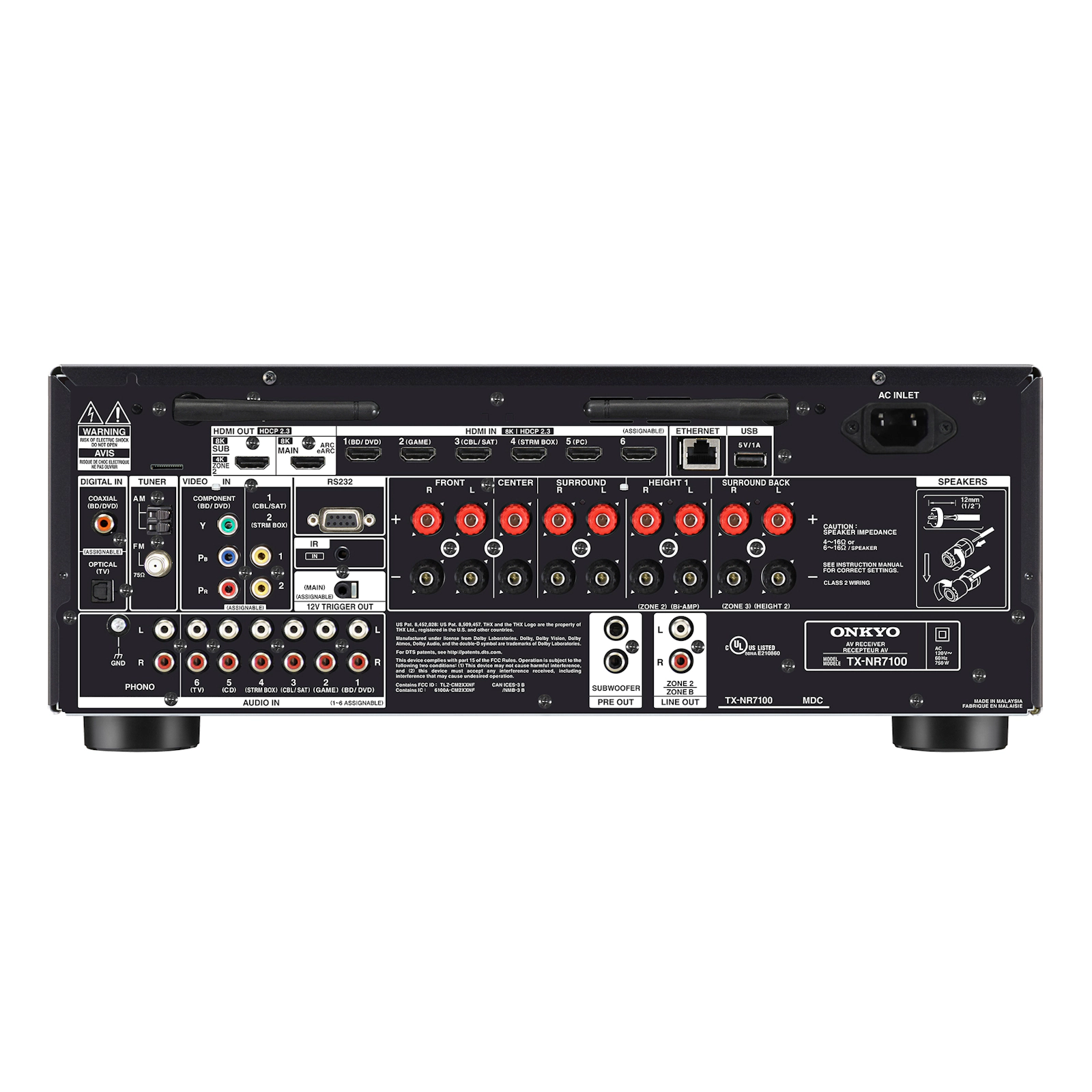

Onkyo TX-NR7100 AV Receiver 9.2-Channel 8K – TX-NR7100

The Onkyo TX-NR7100 9.2-Channel THX Certified AV Receiver delivers immersive audio with Dolby Atmos and DTS:X support, enhanced by Dirac Live Room Correction. It offers 8K video compatibility, built-in streaming services, and smart home integration, ensuring a comprehensive home theater experience.

  • Power output (All channels): 220 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven); 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
  • Dynamic power: 250 W (3 ohms, Front); 220 W (4 ohms, Front); 130 W (8 ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, half power)
  • Input sensitivity and impedance: 200 mV rms/47 k-ohms (Line); 3.5 mV rms/47 k-ohms (Phono MM)
  • Rated RCA output level and impedance: 1 V rms/470 ohms (Subwoofer pre-out); 200 mV rms/470 ohms (Zone 2/Zone B line-out)
  • Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
  • Tone control: ±10 dB, 20 Hz (Bass); ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio: 106 dB (Line, IHF-A); 80 dB (Phono, IHF-A)
  • Speaker impedance: 4–16 ohms
  • FM: 87.5 MHz–107.9 MHz
  • AM: 530 kHz–1,710 kHz
  • FM/AM preset memory: 40 stations
  • Power supply: AC 120 V~, 60 Hz
  • Power consumption (operating): 750 W
  • Power consumption (idle): 75 W
  • Power consumption (standby): 0.1 W
  • Dimensions (W x H x D): 17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)
  • Weight: 22.9 lbs. (10.4 kg)
  • UPC Code (B): 889951003496
  • Carton dimensions (W x H x D): 21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)
  • Carton weight: 29.8 lbs. (13.5 kg)
  • Accessories included: Power cord; Indoor FM antenna; AM loop antenna; Speaker setup microphone; Quick Start Guide; Remote control; Two AAA (R03) batteries
  • Power cord
  • Indoor FM antenna
  • AM loop antenna
  • Speaker setup microphone
  • Quick Start Guide
  • Remote control
  • Two AAA (R03) batteries
